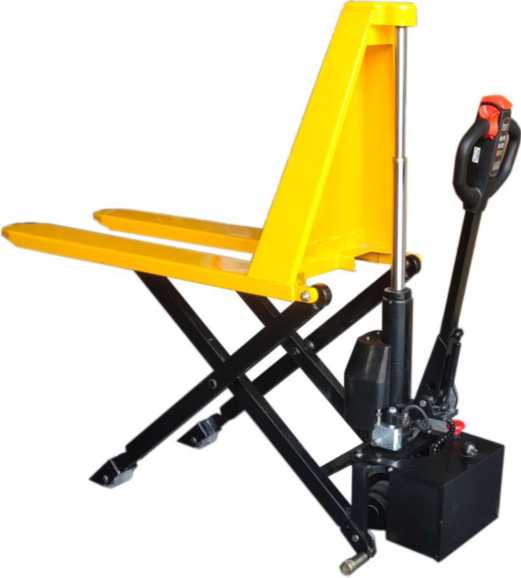

JEF5610 Full Electric High Lift Scissor Truck σειρά DGBZ

The Features of Full Electric High Lift Scissor Truck :

  • New design with larger piston offer you real 1000kg capacity.
  • Extremely easy to operate and make this unit very suitable as combined pallet truck and lift table.
  • Automatic descending speed control by a uniquely hydraulic valve,the decending speed always keeps same regardless the truck with without load.It will prevent cargo damage from fast descending.
  • Ergonomic warm handle offers you simple and comfortable operation.
  • Heavy duty design.4mm steel pallet fork frame and larger lift piston ensure the truck the reach rated capacity.
  • Confroms to EN1757-4
ΜοντέλοJEF5610
Capacity Q(Kg)HW≤450mmH:0~800mm
15001000
Min.Fork Height H3(mm)85
Max.Fork Height H4(mm)≥800
Lift time,unladen (s)≤25
Lift time,laden   (s)≤25≤35
Χαμηλότερη ταχύτητα≤0.1m/s
Fork Width B(mm)560
Single fork Width b(mm)160
Fork Length L2(mm)1140
Driving wheel performance parameters24V/750W
Driving wheels Size∅210x75
Overall Forks Length L (mm)1794
Turning Radius Wa (mm)1635
Load CenterC (mm)750600
Overall Forks Width L1 (mm)600
Overall Forks HeightH1 (mm)1293
Net Weight(Kg)172
Gross weight/net weight of two sets (Kg)355/335
Package size of two sets(cm)186x64.5x95
Battery parameters (lithium battery)weight5.4Kg/piece
Overall size222x175x88mm
Voltage/capacity24V20AH
Motor parameters of lifting pump station24V/800W
Travel speed (km/h)3
